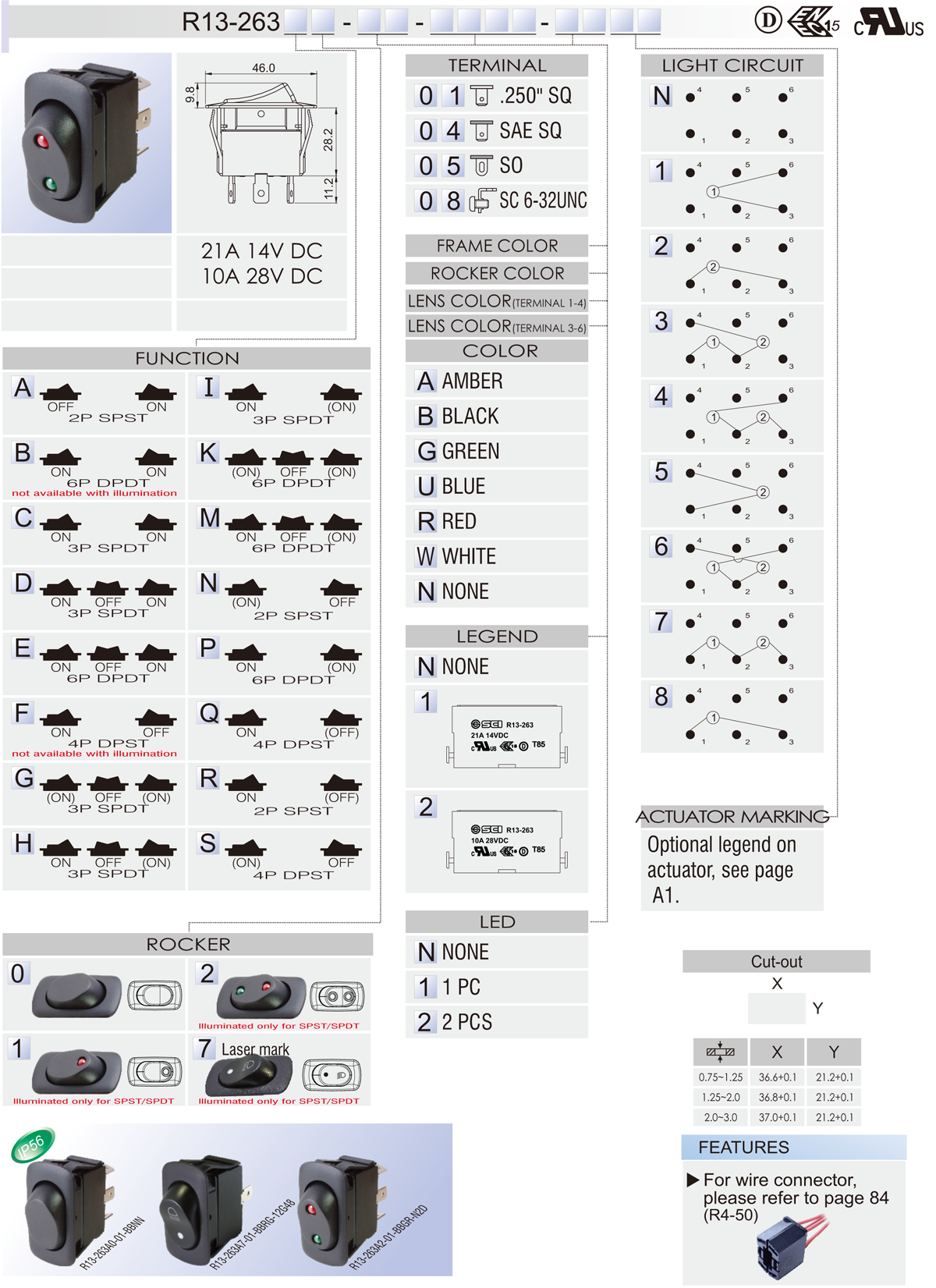

*Rating: 20A 14V DC/10A 28V DC
*Terminal: .250"SQ/SAE SQ/SO/SC 6-32UNC
*Cut-Out: 36.6(L)*21.2(W) mm
*Function: A: 2P SPST ON-OFF, B: 6P DPDT ON-ON, unavailable w/ illumination
C: 3P SPDT ON-ON, D: 3P SPDT ON-OFF-ON
E: 6P DPDT ON-OFF-ON, F: 4P DPST ON-OFF, unavailable w/ illumination
G: 3P SPDT (ON)-OFF-(ON), H: 3P SPDT ON-OFF-(ON)
I: 3P SPDT ON-(ON), K: 6P DPDT (ON)-OFF-(ON)
M: 6P DPDT ON-OFF-(ON), N: 2P SPST (ON)-OFF
P: 6P DPDT ON-(ON), Q: 4P DPST ON-(OFF)
R: 2P SPST ON-(OFF), S: 4P DPST (ON)-OFF
* Illuminated is available with red, amber, green, blue and white colors.
* Snap-in mounting, easy to install switch into panel.
* Watertight gasket and dustproof to fit IP56, except for illuminated types.
*IP56: R13-263A0-01-BBNN
